Spinks Pads

Special Pads

We make hollow for ball printing applications. Special application also includes many mounted on a common base. We also have pads for bulbs, CFLs inside printing of Chinaware etc.

Pad printing is a photogravure process involving a silicone rubber printing pad to transfer a chosen image from a steel etched plate onto the desired product. Pad printing is widely used on uneven surfaces like golf balls due to flexibility of the silicone used to produce the pads. The process involves images being etched onto printing or cliché plates, ink is then poured onto the cliché plate and the pad pressed down onto the plate to pick up the ink. This is then transferred onto the product surface producing a clean finish.

Our in house production team has a wealth of experience. Whatever your printing requirements we will carefully select a suitable Pad Printing solution for your company from our range of over 2000 Pad Printing moulds, a bespoke cliché plate service and an extensive choice of ink.

Book now

Special Bases of Pads

Generally we use a very high density hardwood but also provide in Aluminium or steel bases on request.
Good Quality = harder the pad and more the contour

Choosing the correct print pad can be counter intuitive unless you understand the how and why of the process. While we can certainly teach you to do this, in the end there is no substitute for decades experience and our shelves, which are filled with hundreds of shapes to test.

Book now

Our pads are manufactured of the highest quality German silicone. The molds we use are based off of original high quality masters. The backs are marine plywood, aluminum or Delrin, all of which are precision machined. This is not the case with many cut-rate pads on the market, and it shows. When you re-order a pad, you want to be able to put it in the machine and run. Our production is carefully screened for durometer, flawless print surface and consistent dimensionality.

Storage and Maintenance of Pads:-

Please clear only with Adhesive Tapes. But in case of very dirty pads we recommend ISO Propyl Alcohol (IPA) (as it dries up quickly) on cotton wad moving in one direction of cleaning only. These pads are stored in dry and cool places only.

Choosing the correct print pad can be counter intuitive unless you understand the how and why of the process. While we can certainly teach you to do this, in the end there is no substitute for decades of experience and our shelves, which are filled with hundreds of shapes to test.

Book now

Our pads are manufactured of the highest quality German silicone. The molds we use are based off of original high quality masters. The backs are marine plywood, aluminum or Delrin, all of which are precision machined. This is not the case with many cut-rate pads on the market, and it shows. When you re-order a pad, you want to be able to put it in the machine and run. Our production is carefully screened for durometer, flawless print surface and consistent dimensionality.

Spinks Pads list

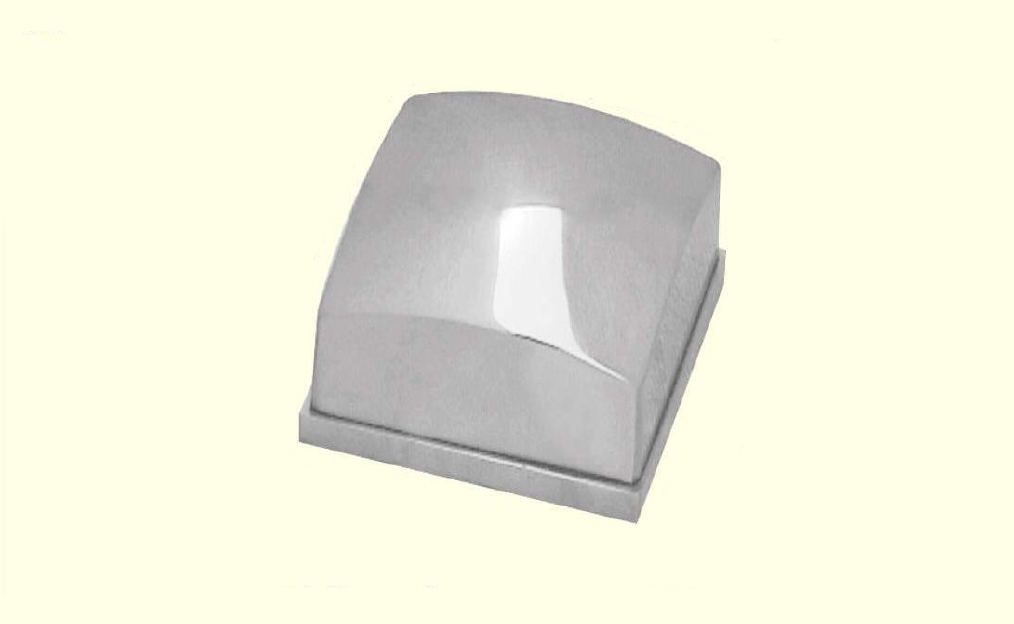

Form number 511-SP
Length 64.5
Width 64.5
Height 50
Base Plate form Squared
Material Wooden
View More

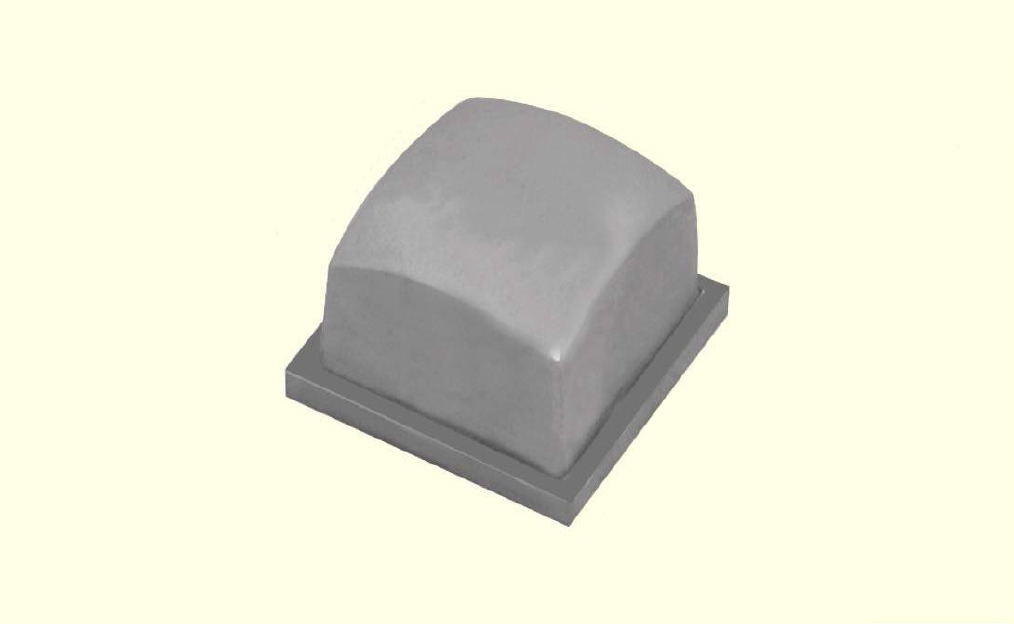

Form number 512-SP
Length 65
Width 65
Height 59
Base Plate form Squared
Material Wooden
View More

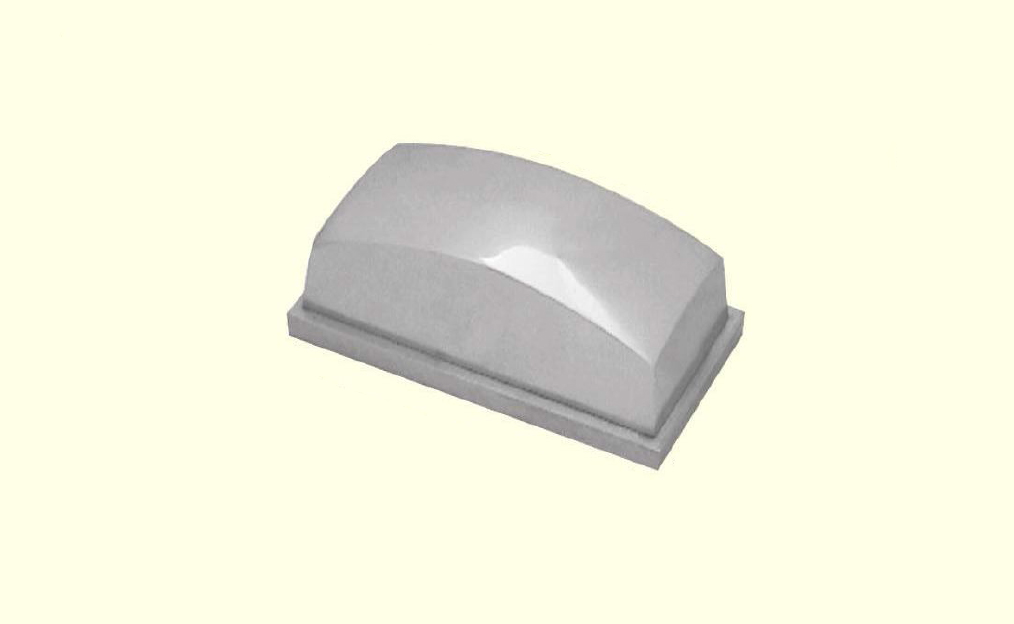

Form number 513-SP
Length 118.5
Width 69.5
Height 57.5
Base Plate form Rectangular
Material Wooden
View More

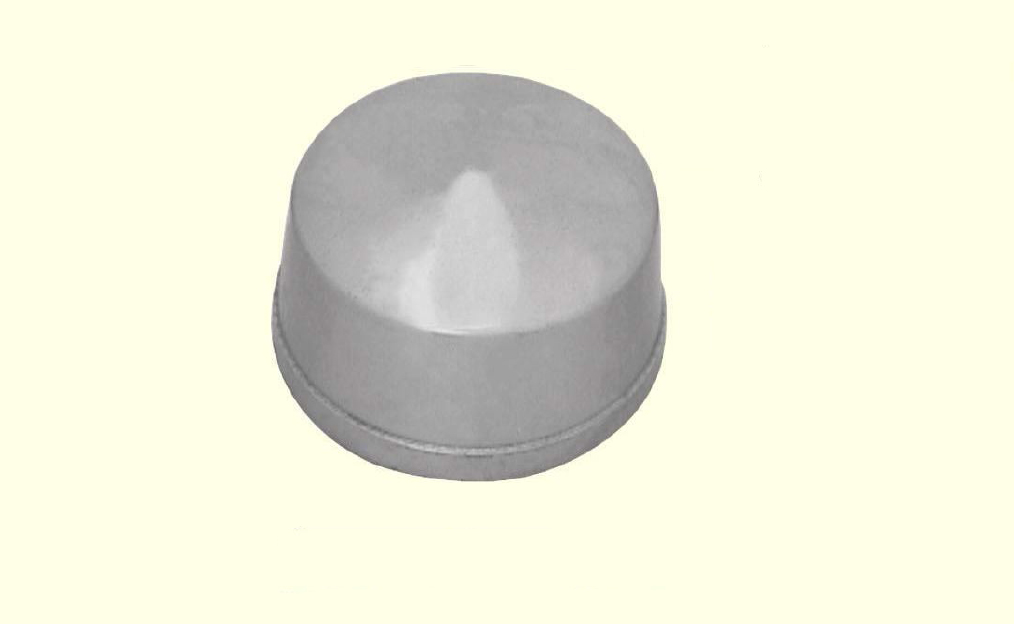

Form number 514-SP
Length
Width
Height 52.5
Base Plate form Round
Material Wooden
View More

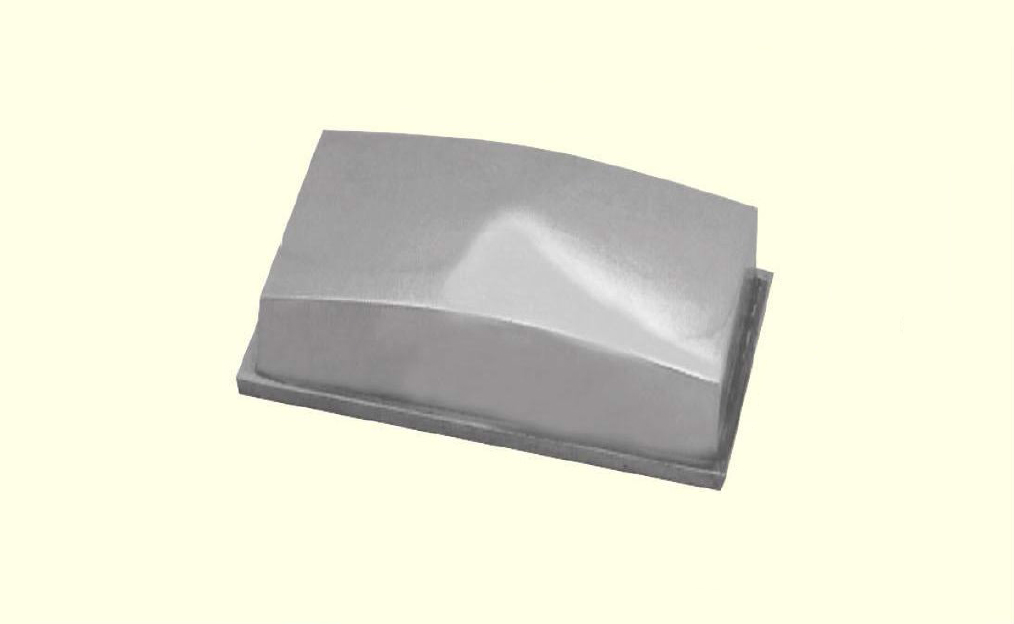

Form number 515-SP
Length 140
Width 69
Height 59
Base Plate form Rectangular
Material Wooden
View More

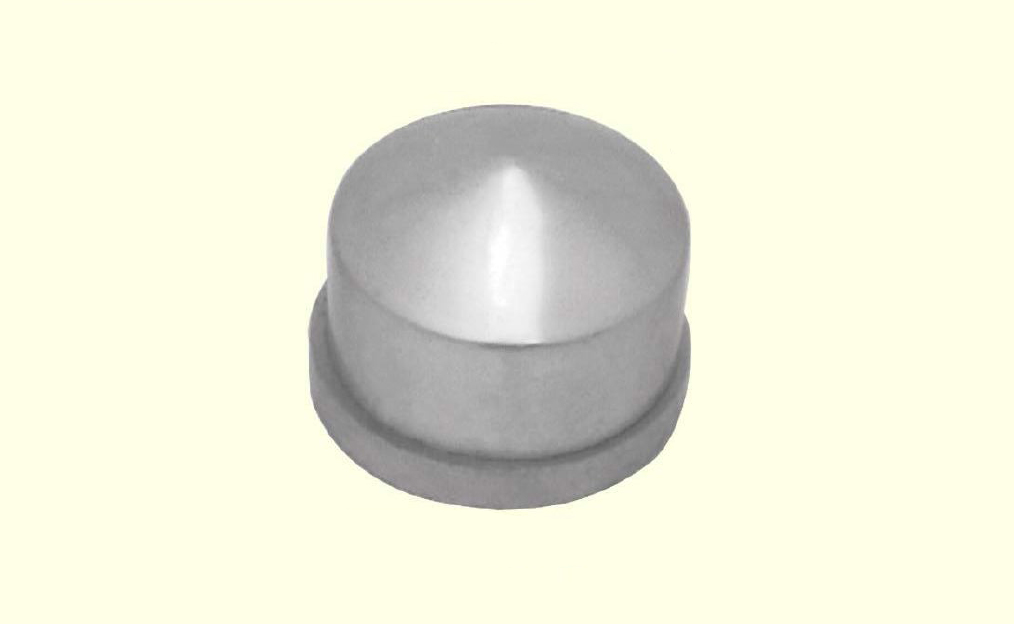

Form number 516-SP
Length
Width
Height 56.5
Base Plate form Round
Material Wooden
View More

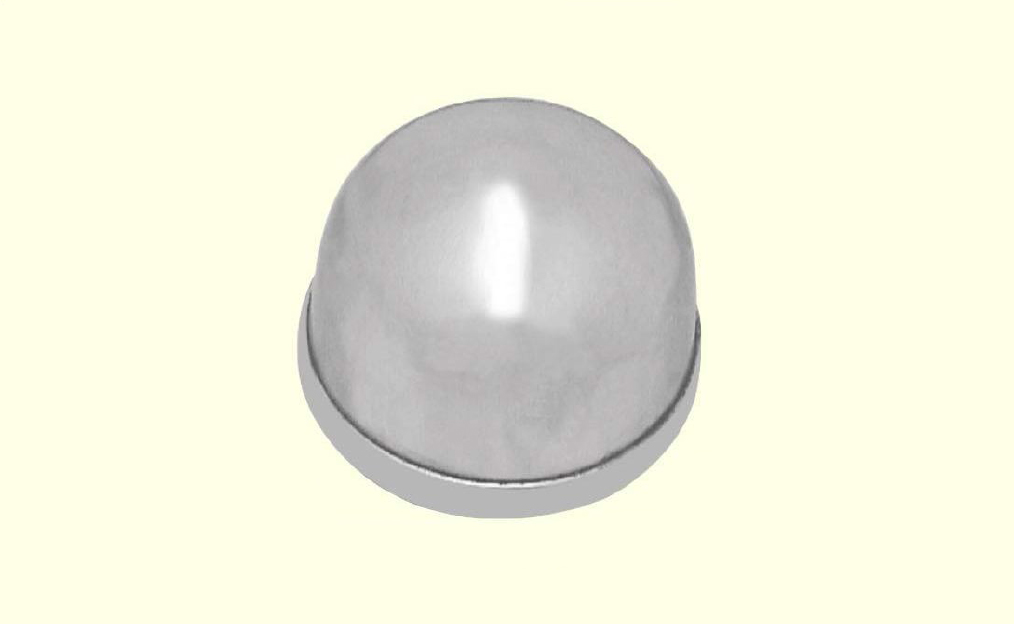

Form number 517-SP
Length
Width
Height 53.5
Base Plate form Round
Material Wooden
View More

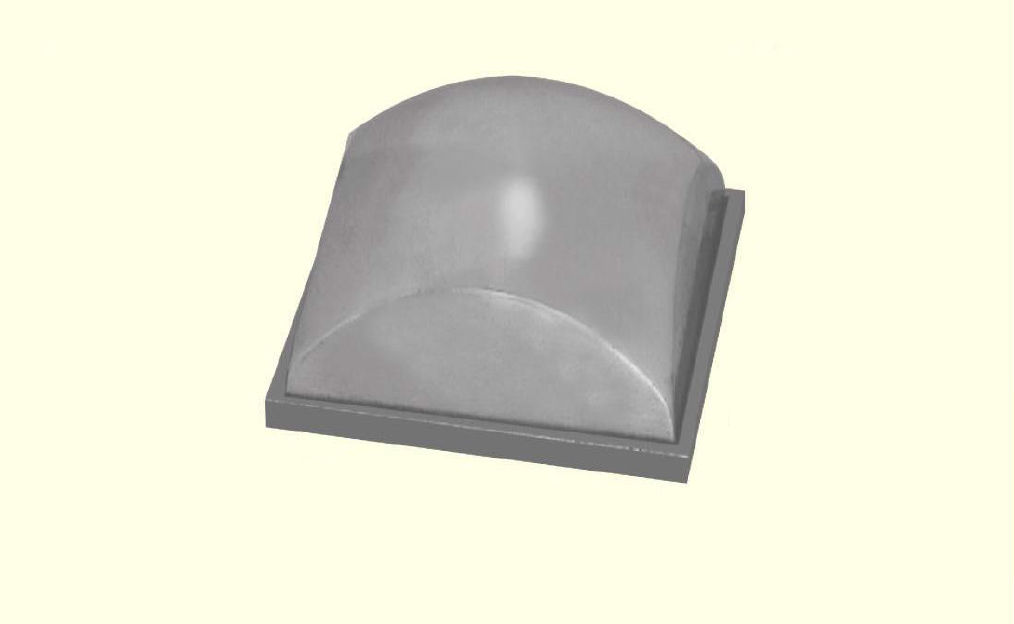

Form number 518-SP
Length 119.2
Width 119.2
Height 74.3
Base Plate form Squared
Material Wooden
View More

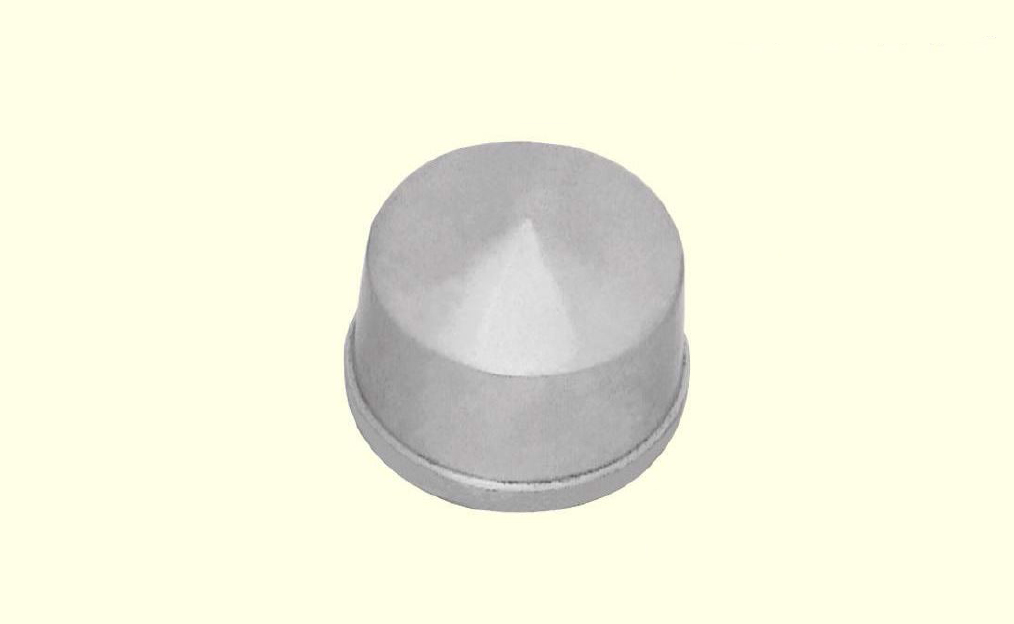

Form number 519-SP
Length
Width
Height 79
Base Plate form Round
Material Wooden
View More
Form number 520-SP
Length 114.5
Width 80.5
Height 92.5
Base Plate form Rectangular
Material Wooden
View More

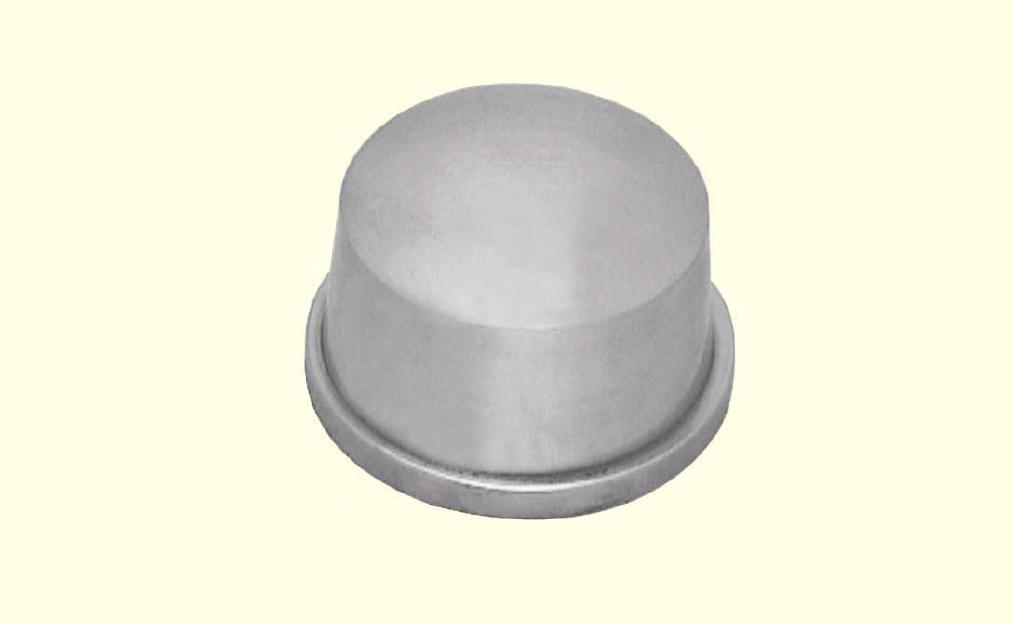

Form number 521-SP
Length
Width
Height 56.6
Base Plate form Round
Material Wooden
View More

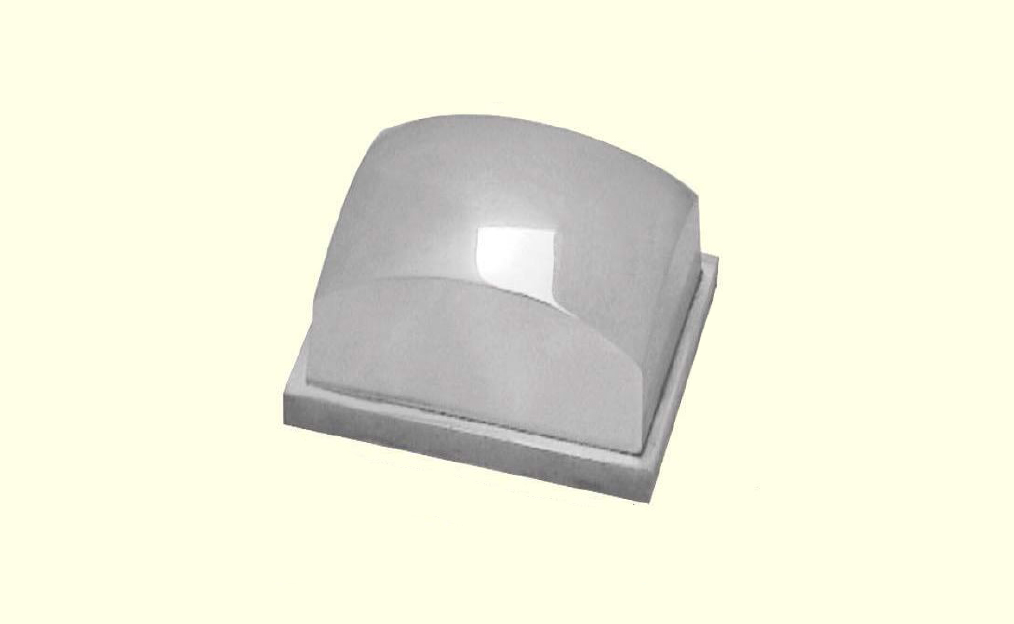

Form number 522-SP
Length 75.8
Width 65
Height 52.8
Base Plate form Rectangular
Material Wooden
View More
